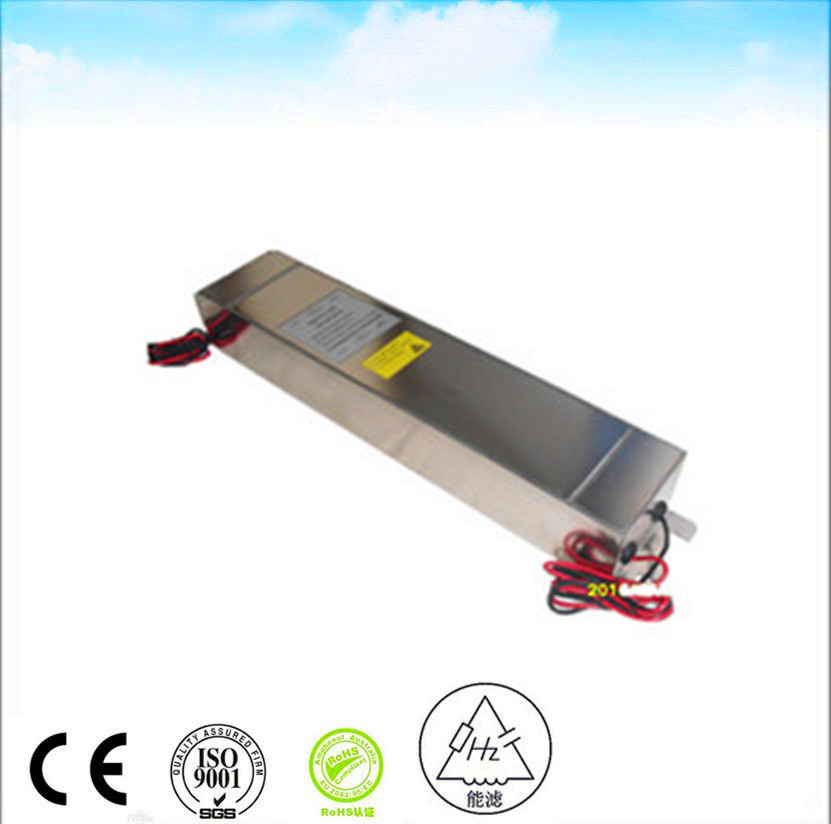

1P 220VAC 50/60 Hz16A EMI POWER LINE FILTER FOR RF SHIELDING ROOM
Power line filter's principle is an impedance adaption network: the
larger the impedance mismatching between line filter input & output
side and power & load side, the more effective the attenuation of
electromagnetic interference (EMI). The specific working principle
is as follows. After AC is rectified by diode, the direction is
single, but the current intensity is still constantly changing.
Generally, this ripple DC is not directly used to power supply. To
make the ripple DC into a smooth waveform, one thing need to be
done, that is filtering. In other words, the task of filters is to
reduce the ripple in the output voltage of the rectifier as much as
possible and transform it into near constant DC.
Performance Data |
Voltage Drop: Less than 1V |
Overload: 140% of rated current for 15 minutes |
Harmonic Distortion: Less than 2% @ full rated current |
Leakage Current:≤0.2A@380/230VAC and 50Hz |
Dielectric Withstanding Voltage: 1000VDC (line to line) 1000VDC
(line to case) |
DC Insulation Resistance: As Per MIL-STD-202 Method 202 |
Terminal Strength: As Per MIL-STD-202 Method 211 |
Temperature Rise: As Per MIL-F-15733 |
Shielding effective: |
10KHz≥60dB |
1MHz~20MHz≥100dB |
20MHz~18GHz≥100dB |
18GHz~40GHz≥80dB |
Climatic Classification: 25/070/21 |
The commonly-used filter circuits of power line filters have
passive filtering and active filtering. The main forms of passive
filtering are capacitive filtering, inductive filtering and complex
filtering (including inverted L-type, LC filtering, LC π-type
filtering and RC π-type filtering, etc.). The main form of active
filtering is active RC filtering, also known as electronic filters.
The magnitude of the ripple component in DC electricity is
represented by the ripple coefficient S: the larger the value, the
worse the filtering effect of the filter.
- Our technical service team learn many kinds of test standard such
as industrial application (IEC61800-3 for frequency inverter drive
EN12015 for elevator EN55011 for ISM device etc) and military
application (GJB151A GJB152A etc).We can solve EMI problem quickly
effectively and low-costly.
- Our test equipment: LCR digital bridge/voltage proof
tester/insulation resistance tester/spectrum analyzer/inductor
tester/standard signal source/shield room/interference intensity
tester etc
- Our product: EMI filter for general purpose/EMI filter for
frequency inverter/EMI filter for shielding facility/EMI filter for
military application
- Our advantage: high quality/high cost-effective/short lead time
- Our service: all products have two years guarantee
